22mm Geared Brushless DC Tsav
Lub 22 hli geared BLDC motors muaj ib tug ncej loj ntawm Φ22 hli, muaj xws li ib tug 22 hli kev lag luam planetary gearbox thiab ib puag ncig 22 hli brushless dc lub cev muaj zog. Lawv muaj nyob rau hauv 2 tus qauv qauv nrog lub iav piv ntawm 4: 1 txog 100: 1. Los ntawm kev sib txuas cov txiaj ntsig ntawm kev siv tshuab tsis siv neeg, cov motors no ua kom muaj txiaj ntsig zoo thiab ua haujlwm ruaj khov, thaum lawv cov iav sib txawv ua rau lawv muaj ntau yam thiab tsim nyog rau kev siv dav dav.
- Kev xa khoom sai
- Quality Assurance
Customization Muaj
Khoom Taw qhia

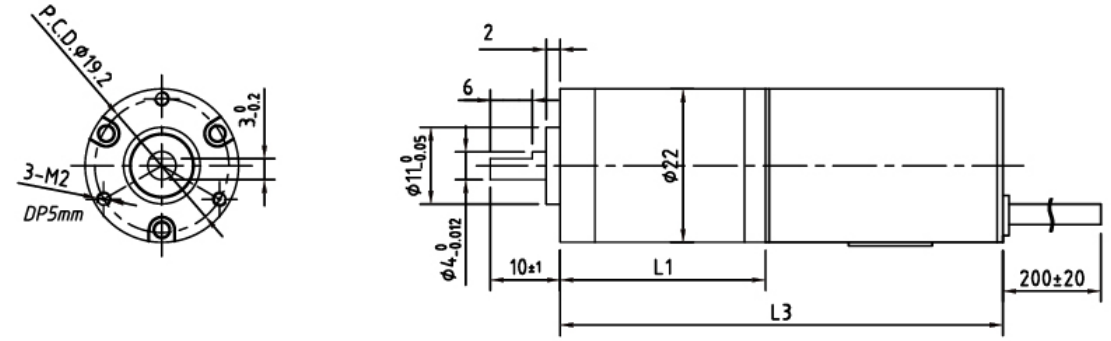

Mechanical Dimension
General Specification
| Hom winding | hnub qub |
| Hall Effect Angle | 120 degree (Lub kaum ntse ntse hluav taws xob) |
| Ncej Axial Ua Si | 0.025 hli |
| Ambient Kub | 0 degree -+50 degree (tsis muaj condensation)) |
| Ambient Humidity | 85% (tsis muaj condensation) |
| Max. Radial Force | 20N |
| Max. Axial quab yuam | 5N |
| Rwb thaiv tsev Class | chav kawm B |
| Dielectric zog | one minute@500VAC.5mA |
| Rwb thaiv tsev Resistance | 100MΩ Min.@500VDC |
Kev sib txuas hluav taws xob
| Lead NO. | Xim Xim | Lead Gauge | Kev sib txuas |
| 1 | Liab | UL1007/26AWG | VCC |
| 2 | Dub | GND | |
| 3 | Daj | HALL A | |
| 4 | Dawb | HALL B | |
| 5 | Xiav | HALL C | |
| 6 | Txiv kab ntxwv | UL1007/22AWG | Phase U |
| 7 | Ntsuab | Phase V | |
| 8 | Xim av | Phase W |
Gearbox Parameter
| Theem | 1 theem | 2 theem | 3 theem | ||||
| Piv txwv | 4 | 5 | 20 | 25 | 64 | 100 | |
| Ntev L1 | mm | 19 | 24.5 | 30 | |||
| Ntev L2 | mm | 21 | 26.5 | 32 | |||
| Rated load | Nm | 0.3 | 0.5 | 0.8 | |||
| Max load | Nm | 1.2 | 1.2 | 1.2 | |||
| Efficiency η | % | 85% | 75% | 65% | |||
| Rov qab | degree | Tsawg dua lossis sib npaug li 1 degree | Tsawg dua los yog sib npaug li 2 degree | Tsawg dua lossis sib npaug li 3 degree | |||
| Qhov hnyav | KG | 0.2 | 0.25 | 0.3 | |||
| Ua haujlwm kub ib puag ncig | degree | -20 degree ~ 90 degree (tsawg kub customizable) | |||||
| Nominal Input Ceev n1N | rpm ua | 3000 | |||||
| Max. input ceev n1B | rpm ua | 5000 | |||||
| Qib ntawm kev tiv thaiv gearbox | IP | 54 | |||||
| Lubrication | Lub neej roj lubrication | ||||||
| Suab nrov | dB | 50dB / 1m | |||||
| Kev Pabcuam Lub Neej | hr | ~5000 | |||||
Motor Technical Specification
| Qauv No. | Rov qab EMF Constant | Rated Voltage | Ceev | Rated Torque | Hwj chim | Rated Tam sim no | Tsis-load Ceev | Tsis muaj load tam sim no | Resistance/kab-kab | Inductance / kab-kab | Ntev |
| V/krpm | VDC | rpm ua | N.m | W | A | rpm ua | A | Ω | mH | mm | |
| 22BL02103-0009-XXX | 1.7 | 24 | 10000 | 0.008 | 8.5 | 0.72 | 14000 | 0.25 | 9.7 | 1.67 | 40 |
| 22BL02402-0053-XXX | 3.5 | 24 | 6000 | 0.011 | 7 | 0.54 | 8900 | 0.11 | 13.9 | 3.79 | 50 |
Lus Cim: Cov neeg siv khoom tsuas yog yuav tsum tau muab qhov nrawm thiab lub zog ntawm qhov kawg ua tiav lub cev muaj zog, thiab peb yuav xaiv lub cev muaj zog thiab gearbox haum rau koj daim ntawv thov.
