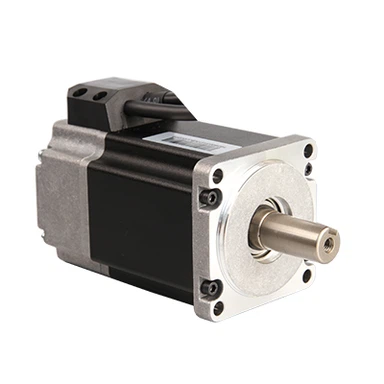

60x60mm 200w 3000rpm 0.64Nm 220VAC Servo Tsav
Qauv nab npawb: 60SV11302-0200B
Ncej loj: 60x60mm
Kev tiv thaiv qib: IP54 (Customizable)
Rated zog: 200W
Rated torque: 0.64N.m
Rated voltage: 220V
Rated tam sim no: 1.6A
Rated ceev: 3000rpm
- Kev xa khoom sai
- Quality Assurance
Customization Muaj
Khoom Taw qhia
Product Overview
Lub 0.64N.m servo lub cev muaj zog, nrog ib tug compact ncej loj ntawm 60x60mm, yog ib tug ntau yam tshuaj rau precision daim ntaub ntawv. Nws muaj kev tiv thaiv qib IP54, uas tuaj yeem ua kom muaj kev hloov pauv mus rau ntau qhov chaw ib puag ncig. Thiab yog tias koj xav tau qib kev tiv thaiv siab dua, nws kuj tuaj yeem hloov kho. Nrog rau qhov ntsuas hluav taws xob ntawm 220V thiab qhov ntsuas tam sim no ntawm 1.6A, nws muaj lub zog ntsuas ntawm 200w. Lub servo lub cev muaj zog qhov ntsuas ceev ntawm 3000rpm lav ceev thiab meej tswj kev txav, ua rau nws tsim nyog rau cov ntawv thov kev ntseeg siab thiab raug.
Technical Specifications
|
Qauv |
Chav tsev |
60SV11302-0200B |
|
Rated zog PN |
W |
200 |
|
Rated Torque TN |
N.m |
0.64 |
|
Rated Voltage uaN |
VAC |
220 |
|
Rated Tam sim no lN |
A |
1.6±10% |
|
Rated Ceev nN |
rpm ua |
3000 |
|
Max Torque TMAX |
N·m |
1.9 |
|
Max tam sim no LMAX |
A |
4.8 |
|
Max. Ceev nMAX |
rpm ua |
4500 |
|
Kab Resistance RL |
Ω |
7±10% |
|
Kab Inductance LL |
mH |
17±20% |
|
Rotor Inertia JM |
kgm 2 |
0.19*10-4 |
|
Rov qab EMP Constant Ke |
V/krpm |
30±10% |
|
Hluav taws xob lub sij hawm tas li Te |
ms |
2.4 |
|
Ntev (nrog nres) |
mm |
120(152)±1 |
|
Qhov hnyav |
KG |
1.3 |
|
Rwb thaiv tsev Class |
F (155 degree) |
|
|
IP Qib |
lP54 (Tuaj yeem ua raws li cov neeg siv khoom xav tau) |
|
|
Ua haujlwm kub |
degree |
-20 ~ 40 degree |
|
Kev ua haujlwm ib puag ncig |
Ib puag ncig kub: -20-40 degree ; Environmental humidity: |
Mechanical Dimension
FAQ
Q: Puas yog qhov 200w servo lub cev muaj zog vibrate lossis co thaum tsiv ntawm kev kub ceev? Yuav daws qhov teeb meem no li cas?
A: Servo motors yuav co los yog co thaum lub sij hawm ceev ceev. Qhov no feem ntau yog tshwm sim los ntawm kev sib tw tsis zoo ntawm lub cev muaj zog thiab cov qauv siv tshuab, thiab cov hauv qab no yog ob peb txoj kev daws teeb meem
1. Kho cov kev tswj lub cev muaj zog: Kev hloov kho kom zoo ntawm cov kev tswj tsis tau ntawm lub servo lub cev muaj zog, xws li kev nce qib, kev sib koom ua ke, thiab lub sijhawm sib txawv, tuaj yeem txo kev co thiab co.
2. Ntxiv dampers: Ntxiv dampers rau cov qauv siv tshuab tuaj yeem txo kev vibration thiab poob siab. Dampers tuaj yeem yog cov tshuab, xws li damping pads lossis damping springs, lossis hluav taws xob, xws li damping controllers.
3. Ua kom zoo rau cov qauv siv tshuab: Kev tsim thiab kev tsim khoom zoo ntawm cov qauv siv tshuab tuaj yeem cuam tshuam rau kev ua haujlwm thiab kev ruaj ntseg ntawm servo lub cev muaj zog. Kev tsim thiab tsim cov qauv siv tshuab yuav tsum tau ua kom zoo kom txo tau kev co thiab kev poob siab.
4. Siv cov encoders daws teeb meem ntau dua: Cov kev daws teeb meem siab dua tuaj yeem muab qhov tseeb dua thiab raug, yog li txo kev co thiab poob siab.
5. Ua kom lub cev muaj zog inertia: Ua kom lub zog inertia ntawm lub cev muaj zog tuaj yeem txhim kho kev ruaj ntseg ntawm cov neeg kho tshuab thiab txo kev vibration thiab poob siab. Qhov no tuaj yeem ua tiav los ntawm kev nce qhov loj ntawm lub cev muaj zog rotor lossis los ntawm kev ntxiv inertial loads.
