AD090 Series Siab Precision Planetary Gearbox
Hom: planetary gearbox nrog helical hniav
Qib ntawm gearbox tiv thaiv qib: IP65
Ratio: 4, 5, 7, 10 (ib theem); 16, 20, 25, 28, 35, 40, 50, 70, 100 (ob theem)
Standard Backlash P1: Tsawg dua los yog sib npaug rau 3 arcmin (ib theem); Tsawg dua los yog sib npaug rau 5 arcmin (ob theem)
Standard Backlash P2: Tsawg dua los yog sib npaug rau 5 arcmin (ib theem); Tsawg dua los yog sib npaug rau 7 arcmin (ob theem)
Eficiency: Ntau dua lossis sib npaug li 97% (ib theem); Ntau dua lossis sib npaug li 94% (ob theem)
- Kev xa khoom sai
- Quality Assurance
Customization Muaj
Khoom Taw qhia

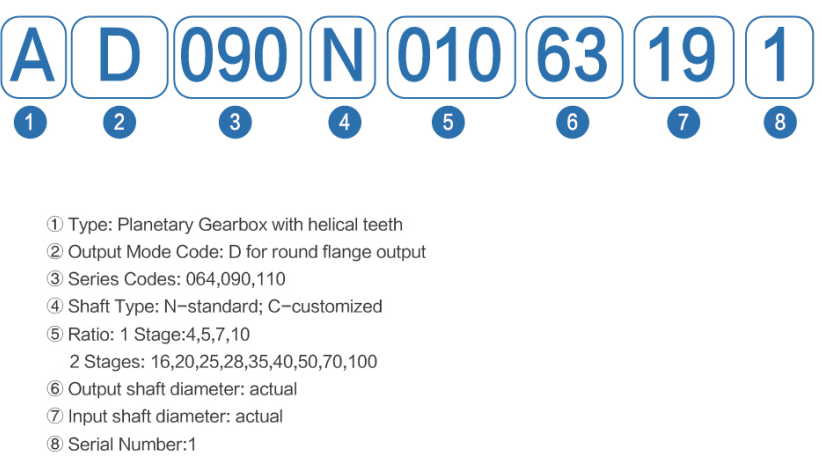

AD Naming Rules(Piv txwv: AD-090N-010-63-19-1)
Cov ntaub ntawv ua haujlwm
|
Technical Parameter |
1 theem |
2 theem | ||||||||||||
|
Piv txwv |
4 |
5 |
7 |
10 |
16 |
20 |
25 |
28 |
35 |
40 |
50 |
70 |
100 |
|
|
Nominal Output Torque T2n |
Nm |
130 |
160 |
140 |
100 |
130 |
130 |
160 |
140 |
140 |
130 |
160 |
140 |
100 |
|
Emergency Stop Torque T2NOT |
Nm |
3 zaug ntawm Nominal Output Torque |
||||||||||||
|
Nominal input Ceev n1N |
rpm ua |
4000 |
||||||||||||
|
Max.Input Ceev n1B |
rpm ua |
8000 |
||||||||||||
|
Txo Backlash P1 |
arcmin |
Tsawg dua los yog sib npaug 3 |
Tsawg dua los yog sib npaug li 5 |
|||||||||||
|
Standard Backlash P2 |
arcmin |
Tsawg dua los yog sib npaug li 5 |
Tsawg dua los yog sib npaug li 7 |
|||||||||||
|
Torsional Rigidity |
Nm/arcmin |
31 |
||||||||||||
|
Max.Bending caij M2KB |
Nm |
235 |
||||||||||||
|
Max.Axial Load F2aB |
N |
2850 |
||||||||||||
|
Kev Pabcuam Lub Neej |
hr |
20000 |
||||||||||||
|
Efficiency η |
% |
Ntau dua lossis sib npaug li 97% |
Ntau dua lossis sib npaug li 94% | |||||||||||
|
Kev khiav hauj lwm Temp |
degree |
-10 degree ~ 90 degree |
||||||||||||
|
Lubrication |
Synthetic lubrication roj |
|||||||||||||
|
Qib ntawm Gearbox Protection |
l65 ua |
|||||||||||||
|
Mounting txoj hauj lwm |
tag nrho cov lus qhia |
|||||||||||||
|
Lub suab nrov (n{0}}rpm, Tsis muaj Load, 50cm) |
dB (A) |
58 |
56 |
55 |
54 |
58 |
58 |
58 |
58 |
57 |
55 |
55 |
55 |
55 |
|
Mass Moments ntawm Inertia J1 |
kg2cm ua |
0.51 |
0.47 |
0.45 |
0.44 |
0.13 |
0.13 |
0.13 |
0.13 |
0.13 |
0.13 |
0.13 |
0.13 |
0.13 |
Mechanical Dimension
Matched Tsav Loj
| AD090 Series | Theem | Piv txwv | Txoj kab uas hla ntawm cov zis ncej | Txoj kab uas hla ntawm input ncej | Txoj kab uas hla x ntev ntawm lub cev muaj zog ncej / Txoj kab uas hla thiab qhov siab ntawm tus tsav ntawm lub cev muaj zog / QTYs-inch-spacing ntawm mounting qhov |
| Ib Theem | 4/5/7/10 | 63 | 12 | Φ12*32/Φ73.02*1.52/4-Φ6.5-Φ69.6*69.6 | |
| 12.7 | Φ12.7*32/Φ73*1.5/4-Φ5.5-Φ69.6*69.6 | ||||
| 14 |
Φ14×35/Φ73×3/4-Φ5.5-69.6×69.6 Φ14×35/Φ73×3/4-Φ6.5-69.6×69.6 Φ14×30/Φ50×3/4-Φ4.5-Φ70 Φ14×30/Φ50×3/4-Φ5.5-Φ70 |
||||
| 19 |
Φ19×30/Φ70×3/4-Φ5.5-Φ90 Φ19×30/Φ70×3/4-Φ6.5-Φ90 Φ19×30/Φ80×3/4-Φ6.5-Φ100 |
||||
| 22 | Φ22×58/Φ110×6/4-Φ9-Φ145 | ||||
| 24 |
Φ24×35/Φ95×6/4-Φ6.5-Φ115 Φ24×35/Φ95×6/4-Φ6.5-Φ130 Φ24×58/Φ110×6/4-Φ9-Φ145 |
||||
| Ob theem |
16/20/25/28/35/ 40/50/70/100 |
63 | 12 | Φ12*32/Φ73.02*1.52/4-Φ6.5-Φ69.6*69.6 | |
| 12.7 | Φ12.7*32/Φ73*1.5/4-Φ5.5-Φ69.6*69.6 | ||||
| 14 |
Φ14×35/Φ73×3/4-Φ5.5-69.6×69.6 Φ14×35/Φ73×3/4-Φ6.5-69.6×69.6 Φ14×30/Φ50×3/4-Φ4.5-Φ70 Φ14×30/Φ50×3/4-Φ5.5-Φ70 |
||||
| 19 |
Φ19×30/Φ70×3/4-Φ5.5-Φ90 Φ19×30/Φ70×3/4-Φ6.5-Φ90 |
||||
| 22 | Φ22×58/Φ110×6/4-Φ9-Φ145 |
