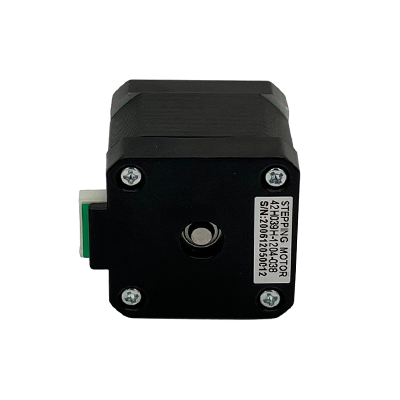

NEMA 17 Bipolar 1.8deg 0.4Nm 1.2A 2.8V 42x42x39mm Stepper Tsav
Tus Qauv Zauv: 42H039H-1204-038
Ncej Loj: 42x42mm
Lub cev muaj zog: Bipolar Stepper
Tuav Torque: 4 kgf.cm
Rated Tam sim no / theem: 1.2 A
Kev ntsuas hluav taws xob: 2.8V
Connector: S6B-PH-KS
Daim ntawv thov: 3D tshuab luam ntawv, CNC tshuab, Textile Machinery, thiab lwm yam
- Kev xa khoom sai
- Quality Assurance
Customization Muaj
Khoom Taw qhia
General Specification
|
Kauj ruam Angle Accuracy |
±5% |
|
Resistance raug |
±10% |
|
Inductance Qhov tseeb |
±20% |
|
Kub nce |
80k Max. |
|
Ambient Kub |
-20 degree ~ +50 degree |
|
Rwb thaiv tsev Resistance |
100MΩMin.@500VDC |
|
Dielectric zog |
Ib feeb @ 500VAC∙5mA Max. |
|
Ncej Radial Ua Si |
0.06Max.@450g |
|
Ncej Axial Ua Si |
0.08Max.@450g |
Hluav taws xob Specification
| Qauv nab npawb | 42H039H-1204-038 |
| Hom Tsav | Bipolar |
| Kauj ruam | 1.8 degree ± 5% |
| Tus naj npawb ntawm Theem | 2 |
| Tuav Torque | 4 kxf cm |
| Rated Tam sim no / theem | 1.2A (tus nqi siab tshaj) |
| Rated Voltage | 2.8V |
| Phase Resistance | 2.3Ω ± 10% (20 degree) |
| Theem Inductance | 5.3mH ± 20% (1kHz 1V RMS) |
| Rotor Inertia | 5 4g kwg |
Lub cev Specification
| Ncej Loj | 42 x 42 mm |
| Lub cev Ntev | 39mm ib |
| Ncej kab | Φ5 hli |
| Pem hauv ntej ncej Length | 20 hli |
| D-txiav Ncej Length | 18 hli |
| Qhov hnyav | 0.28kg |
FAQ
Q: Koj lub Hoobkas ua li cas txog kev tswj xyuas zoo?
A: Qhov zoo yog qhov tseem ceeb. Peb ib txwm muab qhov tseem ceeb rau kev tswj kom zoo txij thaum pib mus txog thaum kawg ntawm kev tsim khoom. Txhua yam khoom yuav raug kuaj ua tib zoo ua ntej nws tau ntim rau cov khoom xa tuaj.
Q: Puas yog peb tuaj yeem tuaj xyuas koj lub Hoobkas ua ntej lees paub peb qhov kev txiav txim?
A: Tau kawg, peb yuav zoo siab los npaj lub Hoobkas tuaj ntsib koj. Qhov no tsis tsuas yog tso cai rau koj kom paub koj tus kheej nrog peb cov haujlwm tab sis tseem pab tsim kom muaj lub hauv paus ruaj khov rau peb txoj kev lag luam kev sib raug zoo.
Q: Koj puas tuaj yeem piav qhia txog kev ntim khoom siv rau koj lub cav?
A: Peb lub cev muaj zog tau ntim rau hauv kev poob siab-absorbing ua npuas ncauj. Txhua lub cev muaj zog tau muab tso rau hauv ib lub hnab tsho hauv tus neeg ua npuas ncauj kom tsis txhob muaj kev puas tsuaj los ntawm kev sib cuag nrog lwm lub cev muaj zog thiab tiv thaiv kev nruj ntawm kev thauj mus los, suav nrog kev vibrations hnyav.
Q: Puas muaj kev txo nqi rau kev txiav txim loj?
A: Yog, peb muab cov luv nqi rau kev txiav txim loj, thiab cov nqi luv nqi tshwj xeeb kuj txawv nyob ntawm tus qauv. Thov hu rau peb pab neeg muag khoom kom paub meej ntxiv.
