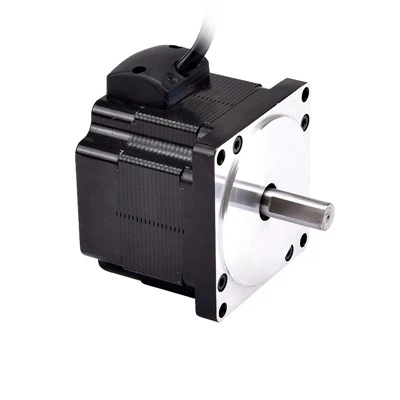

48V 4000RPM 0.72Nm 300W 7.49A 80x80x84mm Brushless DC Tsav
Chaw tsim tshuaj paus tus lej: 80BL04402-0300-XXX
Ncej Loj: 80x80mm
Kev tiv thaiv qib: IP40
Rated voltage: 48V
Rated Ceev: 4000RPM
Rated Torque: 0.72Nm
Lub zog: 300W
- Kev xa khoom sai
- Quality Assurance
Customization Muaj
Khoom Taw qhia
General Specifications
|
Qib tiv thaiv |
IP40 |
|
Ambient Kub |
-20 degree ~ 55 degree |
|
Cia Kub |
-25 degree ~ +70 degree |
|
Ambient Humidity |
<85% ( without condensation ) |
|
Rwb thaiv tsev Class |
Chav B |
|
Rwb thaiv tsev Resistance |
100MΩMin.@500VDC |
Kev xaim
|
Lead No. |
Xim Xim |
Lead Gauge |
Muaj nuj nqi |
Kev piav qhia |
|
1 |
Liab |
UL1061/24AWG |
VCC |
Muab voltage rau Hall Sensors |
|
2 |
Daj |
Hv |
||
|
3 |
Xiav |
Hw |
||
|
4 |
Dub |
GND |
Hauv av rau Hall Sensors | |
|
5 |
Txiv kab ntxwv |
Hu |
||
|
6 |
Xiav |
UL1061/18AWG |
w |
|
|
7 |
Txiv kab ntxwv |
u |
||
|
8 |
Daj |
v |
Technical Specification
|
Qauv NO. |
Rated Voltage |
Ceev |
Rated Torque |
Hwj chim |
Rated Tam sim no |
Tsis-load Ceev |
Tsis muaj load tam sim no |
Resistance/kab-kab |
Inductance / kab-kab |
Rov qab EMF Constant |
Ntev |
|
VDC |
rpm ua |
N.m |
W |
A |
rpm ua |
A |
Ω |
mH |
V/krpm |
mm |
|
|
80BL04402-0300-XXX |
48 |
4000 |
0.72 |
300 |
7.49 |
4500 |
1.5 |
0.20 |
0.47 |
7.03 |
84 |
Mechanical Dimension
